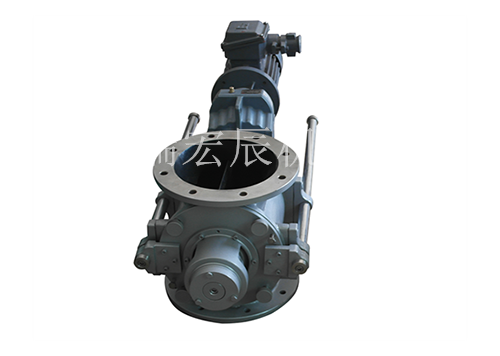

快速清洗旋轉閥可廣泛應用于食品和醫藥行業的有高衛生要求的場合，拆卸方便，易于進行快速清理工作，符合高，要求的衛生標準。我公司現有兩種快拆易清理旋轉閥，一種是滑桿式，  另一種是快開門式，無死點，操作方便。

1、滑桿式：可原地抽出轉子清理，清理完畢后轉子推入，旋緊定位螺栓即可。

2、快開門式：打開門，松開固定螺栓，抽出葉輪，清洗葉輪后將葉輪推入，旋緊定位螺栓。優點是可把葉輪異地清理。

產品特點

1．殼體及主要零部件采用精密鑄造，外形美觀。

2．轉子易于拆卸，方便清洗。

3．轉子設有多種形式，適用多種不同特殊物料；轉子軸承采用多層保護系統；確保長期工作。

4．與物半斗接觸部位的材料均采用食品級材料，并拋光處理。

The products summary:

Quick cleaning type rotary valve is extensively used in the occasion which needs high hygienee requirements in food and medicine industry. The product is easy to disassemble and to clean so it conforms to high  hygiene standards. Now our company has two kinds of Quick cleaning type rotary valve. One is litter type, the other one is Quick-opening gate type, which is with nodead corner. Both of them are easy to operate.

1. Litter type：

The rotor can take out.easily.  VVhen the rotor was cleaned up push it into the valve,then tightening the positioning bolts.

2 Quick-open gate type:

Open the door, release the position bolts, take out the impeller Push it into the valve until cleaned it up,then tightening the positioning bolts. The advantage is the impeller can wash  in different localities.

The products characters:

1 .The shell and the mail Darts are accuracy and beautiful.

2.The rotor is easy to disassemble and clean.

3.Rotor has a variety of forms which is appl  wide rang of special materas. Rotor is bearing a multi-Iayered protection system to ensure long-term work.

4.The parts contacted with food are all used food-grade materials,which are processed and polished.

技術參數
